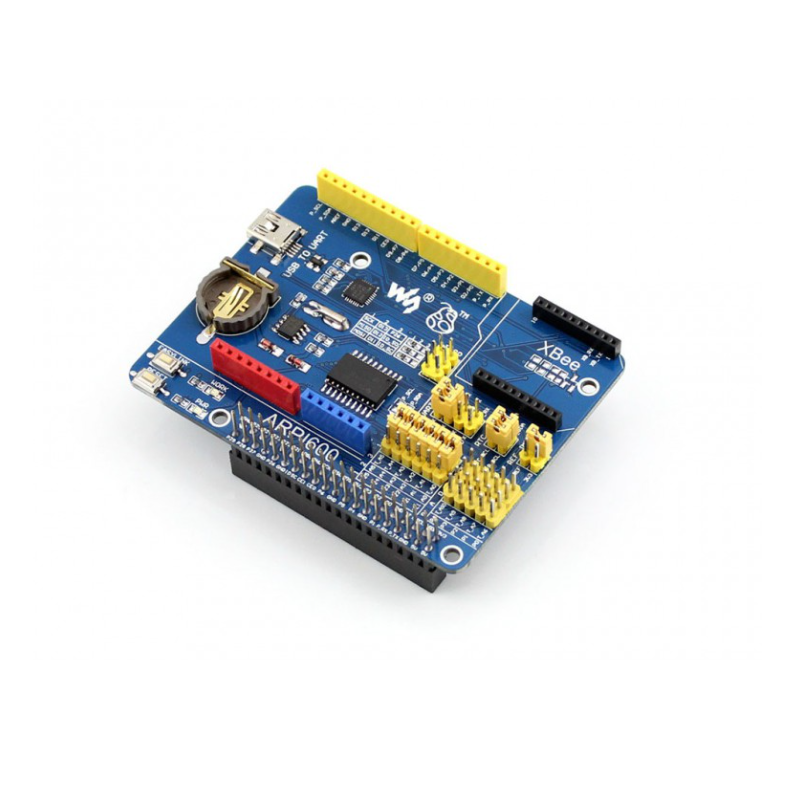

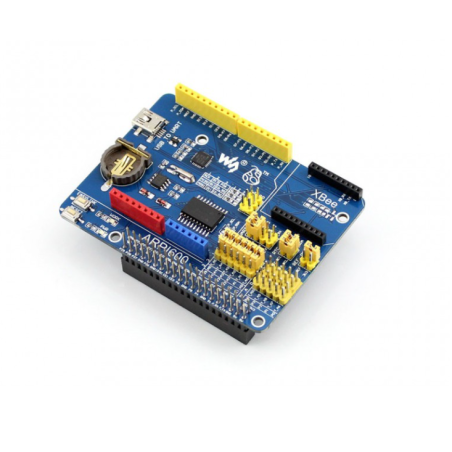

ARPI600 – Raspberry Pi Expansion Board for Arduino Shields & XBee
$35.00
Tax included
An innovative expansion board from Waveshare, designed to convert the GPIO pins of the Raspberry Pi (Model B+, Pi 2, Pi 3) into pins compatible with Arduino Shields and XBee modules. This board allows you to leverage the massive Arduino ecosystem with thousands of ready-made shields (e.g., motor control, GPS, GSM, displays) while adding wireless communication capabilities via XBee modules for IoT projects.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
-
Arduino Shield Compatible: Connect any shield designed for Arduino directly to your Raspberry Pi .
-
XBee Module Support: Two XBee sockets (with USB VCP mode support) for easy wireless communication .
-
Built-in Level Converter: Translates voltage levels between 3.3V (Raspberry Pi) and 5V (Arduino Shields) for safe and reliable operation .
-
External Power Option: Selectable power source (Raspberry Pi USB or external 5V/9V/12V) — essential for power-hungry shields .
-
Flexible I/O Mapping: Some Raspberry Pi I/O pins can be reprogrammed to match the requirements of different Arduino Shields .
-
Compact Design: Small footprint that mounts easily on top of a Raspberry Pi board .
Key Technical Specifications
| Specification | Value |
|---|---|
| Compatibility | Raspberry Pi Model B+, Pi 2, Pi 3, Pi4, Pi 5 |
| Arduino Shield Support | Yes (Arduino Uno R3 pinout compatible) |
| XBee Support | Yes (dual XBee sockets, USB VCP mode) |
| Voltage Level Conversion | 3.3V (Pi) ↔ 5V (Shields) |
| Power Options | Pi USB or external 5V/9V/12V |
| Raspberry Pi 4/5 Compatibility | Not specified (requires verification) |
Package Contents
-
1 × ARPI600 Board
-
(Note: Raspberry Pi, Arduino Shields, and XBee modules are NOT included)
