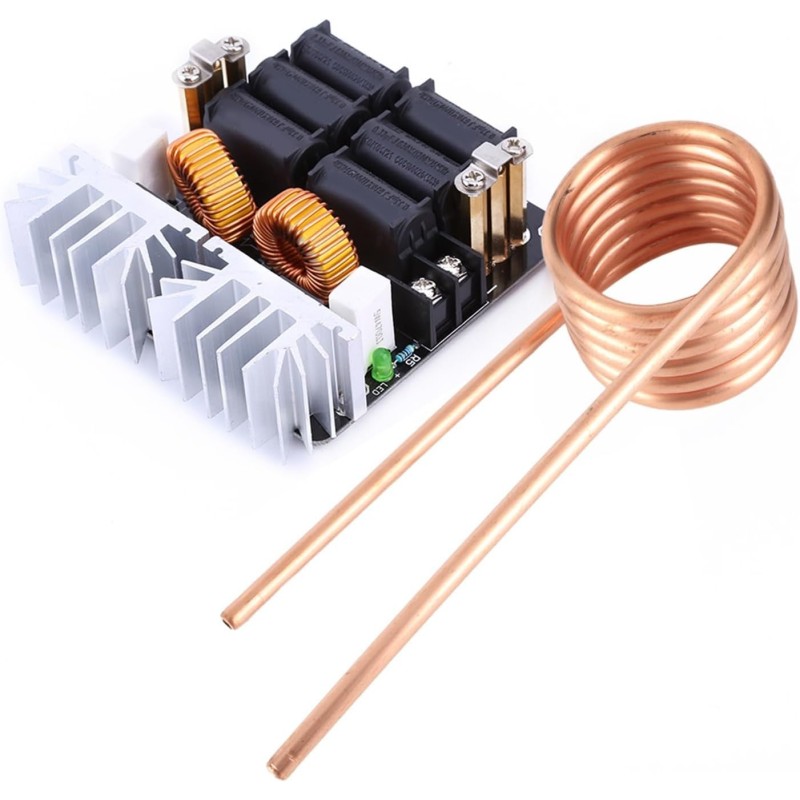

1000W ZVS Low Voltage Induction Heating Board – 12-48V (for Hardening, Annealing, Metal Melting)
$45.00
Tax included
A high-power induction heating board based on ZVS (Zero Voltage Switching) technology, designed to heat metals quickly and efficiently using a low DC voltage of 12-48V. This board is a powerful tool for hobbyists and small labs to perform hardening, annealing, metal melting (e.g., gold, silver, copper), and desoldering large electronic components .
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
-
High Power up to 1000W: Fast and efficient heating thanks to up to 20A current (at 48V) .
-
Large Heating Coil: 40mm inner diameter and 50mm height, accommodating a 40mm crucible .
-
Improved Cooling: 8.5mm thick cooling substrate with M4 cooling pillars for efficient heat dissipation .
-
Flexible Operating Voltage: Runs on 12-48V DC – higher voltage gives higher heating power .
-
Versatile Applications: Suitable for hardening tools, annealing metals, melting small amounts of precious metals, and heat treatment of small parts .
-
Durable Design: Includes a complete set of driver circuit elements and brass components to withstand high temperatures .
Key Technical Specifications
| Specification | Value |
|---|---|
| Max Power | 1000W |
| Operating Voltage | 12 – 48V DC |
| Max Current | 20A |
| Coil Inner Diameter | 40 mm |
| Coil Height | 50 mm |
| No-load Current (24V) | 3A |
| No-load Current (48V) | 6A |
| Product Dimensions | 25 × 17 × 7 cm |
| Weight | 587 g |
| Brand | Ausla |
Package Contents
-
1 × ZVS Induction Heating Board (with heating coil)
-
1 × Set of driver circuit elements and brass components
Important Notes: The package does NOT include the power supply, cooling unit (fan), or graphite crucible .
Basic Operating Requirements
To operate this board safely and effectively, you will need:
-
DC Power Supply: 12-48V DC, with sufficient current rating (at least 20A at 48V) (not included) .
-
Cooling Unit (Fan): A fan blowing top-down to cool capacitors and components (not included) .
-
Safety Gear: Heat-resistant gloves and safety glasses .
⚠️ Critical Safety Warnings
-
⚠️ Burn & Fire Hazard: Metal parts inside the coil can reach over 1000°C, posing a severe burn and fire risk .
-
⚠️ Electrical Hazard: The board operates at low voltage (12-48V), but high currents (up to 20A) are also dangerous. Avoid touching circuits while powered .
-
⚠️ Power-Up Sensitivity: When using a switching power supply, turn the supply on first until the output reaches 12V, then connect it to the heating board. Otherwise, the board may fail to start or get damaged .
-
⚠️ Metal Piece Size: The volume of the metal piece to be heated must not exceed 1/5 of the coil's internal volume. For a cylinder, its diameter must not exceed 1/3 of the coil's diameter , otherwise overload may occur .
