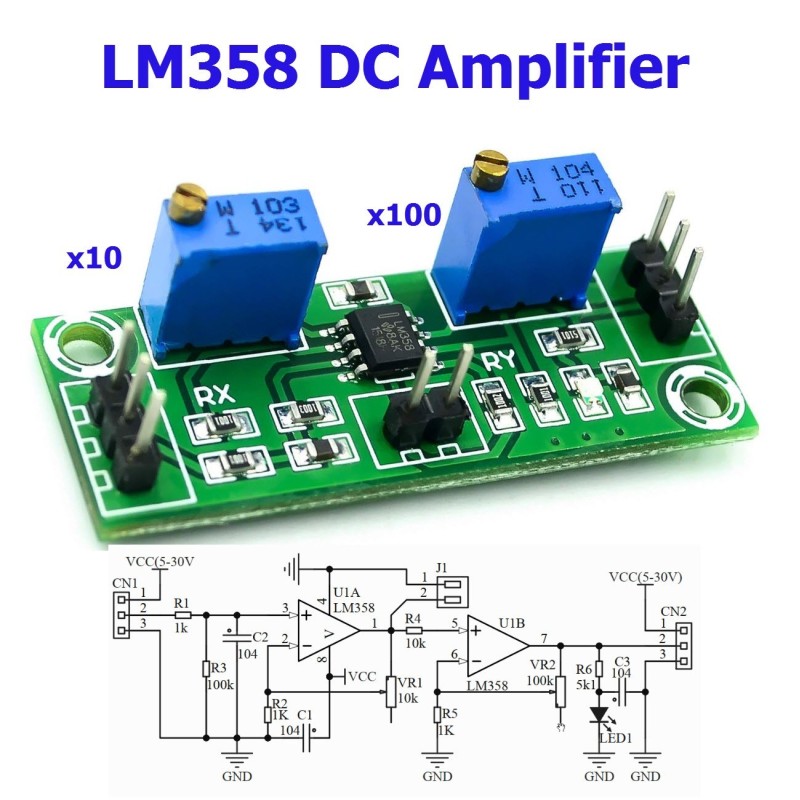

LM358 DC Amplifier module
$7.00
Tax included
LM358 Gain Signal Amplification Operational Amplifier Module which can provide amplification of about 1x-1000x. This can be used very easily as it has header pins that can connect directly to your development board. It is designed to operate from a single power supply over a wide range of voltages. It is used in conventional operational amplifier circuits that need to be operated from a single power rail.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features:
- Chip: LM358
- Easy to use and reliable
- Adjustable gain up to 10x-1000x
- It has an onboard potentiometer for changing the amplification
- It has an onboard power indicator.
- Chip has been drawn out to the main pins for direct input and output of signals
The gain has a range of 1x to 1000x and is adjustable using the multi-turn potentiometer on the module. Turning the pot CW lowers the amplification while turning it CCW increases it.
An power LED is included on the module.
