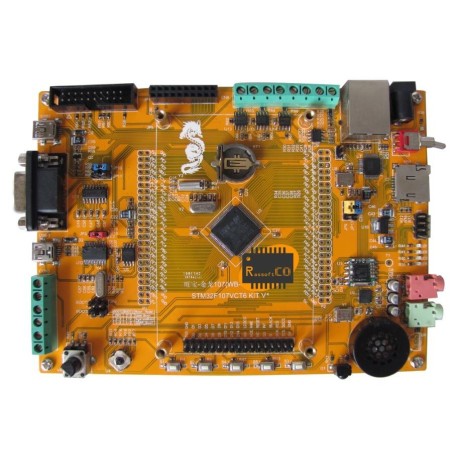

STM32F107VCT6 Development board ( includes USB OTG,Ethernet,10 timer,2 CANs,2 ADCs,256KB Flash,6KB RAM)

STM32F107VC ARM-based 32-bit MCU with 256 KB Flash of on-chip Flash memory, up to 64 Kbytes of SRAM. The STM32F107VC includes USB OTG, Ethernet, 10 timers, 2 CANs, 2 ADCs, 14 communication interfaces.

With a true color 3.2 inch TFT touch screen module (not included), FSMC control, color touch module configuration ADS7843(or RSM1843 instead) controller, support for a SD card (SPI mode) can be used to store pictures,in support of AT45DBxxx of a DATA FLASH (can be used for storage)
One 10/100 Ethernet MAC with embedded DMA and IEEE 1588 hardware support,Ethernet PHY connectable using MII and RMII interfaces,the PHY driver chip DP83848
One USB 2.0 On-The-Go (OTG) full speed with embedded OTG PHY with MINI-AB interface
Dual CAN 2.0B interface,the driver chip SN65VHD230
One RS485 interface,the driver chip SP3485
One backup battery socket
Two ways RS232 interface,one is USB to 232,other is DB9
One power input jack
One AD adjust input
Five keys input,one RESET key,four user programmable keys
One Five keys to enter the joystick (Joystick)
Four user programmable LED light
One Mricro SD card interface with SPI mode
One I2C memory interface,the standard 24LC02 (EEPROM)
One SPI memory interface,W25Q16(DATA FLASH)
Support 2.4G wireless interface(NRF24L01)(need to pay more 2$)
Support OV7670 camera model(need to pay more 20$)
Support thermometric model(DS18B20)
One infrared interface
Radio model onboard(TEA5767)
Professional audio-chip(WM8978),play MP3 file
One High quality and beautiful speaker
One exact adjustable resistance(20K)
Two channels ADC input socket
Two channels DAC output socket
Power Select jumper to support the external 5V power supply,USB power supply
All I / O port through the standard pitch leads 2.54MM,
Board Size: 15.7CM X 11.5C
