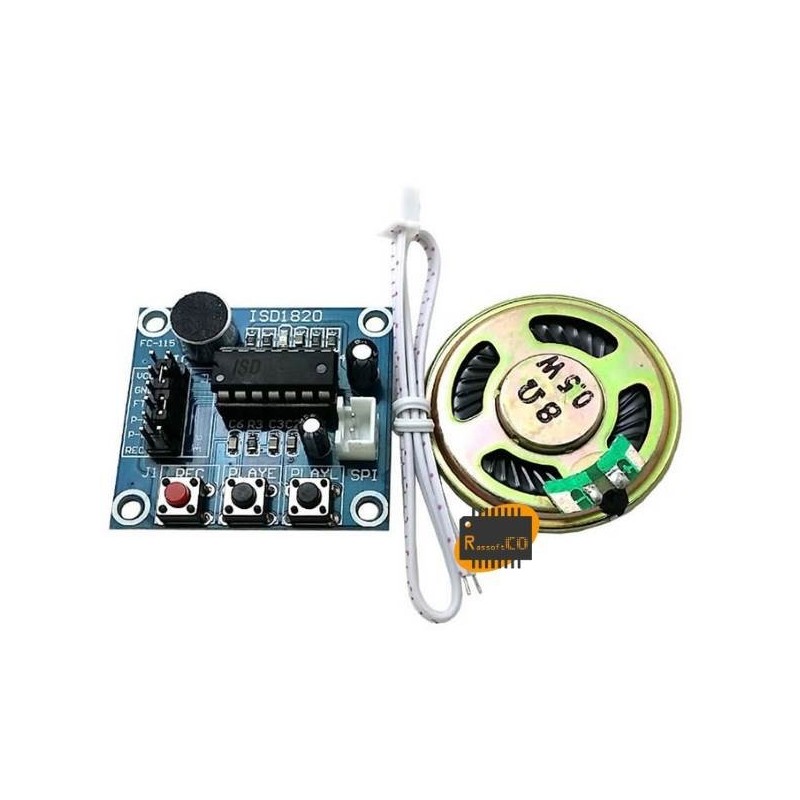

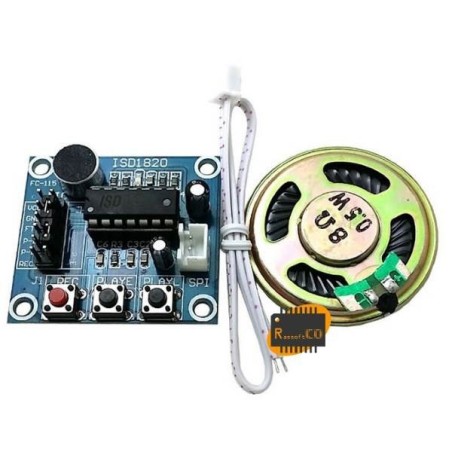

ISD1820 Sound Recording Module

Voice Record Module - ISD1820

This module is base on ISD1820, which a multiple-message record/playback device. It can offers true single-chip voice recording, no-volatile storage, and playback capability for 8 to 20 seconds. The sample is 3.2k and the total 20s for the Recorder.
This module use is very easy which you could direct control by push button on board or by Microcontroller such as Arduino, STM32, ChipKit etc. Frome these, you can easy control record , playback and repeat and so on.
Feature:
    Push-button interface, playback can be edge or level activated
    Automatic power-dwon mode
    On-chip 8? speaker driver
    Signal 3V Power Supply
    Can be controlled both manually or by MCU
    Sample rate and duration changable by replacing a single resistor
    Record up to 20 seconds of audio
    Dimensions: 37 x 54 mm

Application Ideas:
    Toys
    Alarm
    ...

Cautions:
    VCC is signal of 3.3V, do not exceed this range, otherwise it by destroyed the module.
