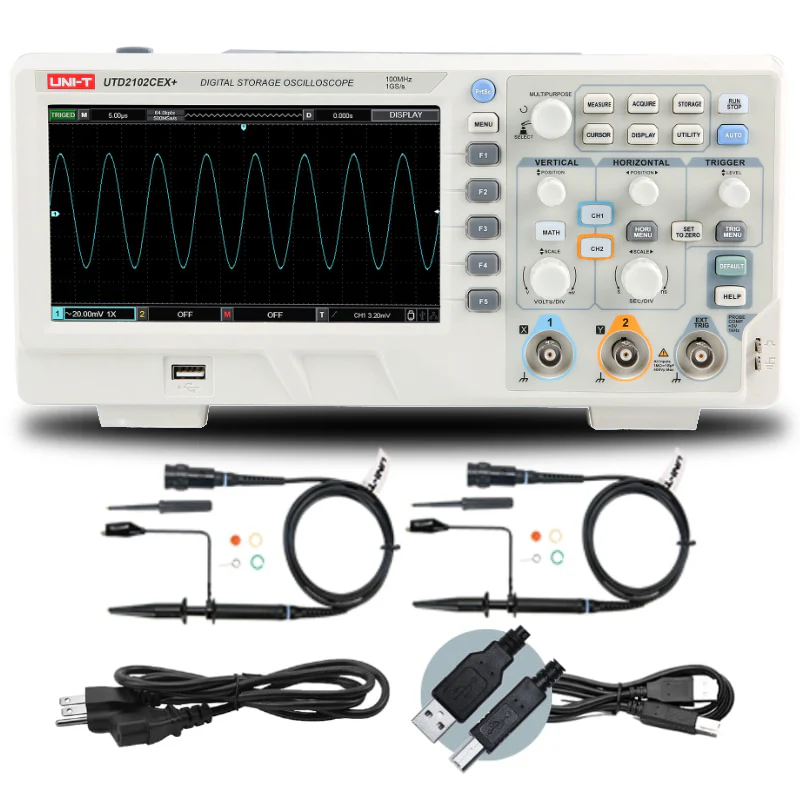

UNI-T UTD2102CEX+ – 100MHz 2-Channel Digital Storage Oscilloscope
290.00 US$
شامل للضريبة
A high-performance, cost-effective digital storage oscilloscope ideal for educational labs, service workshops, and professional hobbyists. Featuring a 1GSa/s real-time sample rate and a large 7-inch display, this oscilloscope delivers accurate signal measurement and clear waveform visualization .
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
High Bandwidth: 100 MHz, suitable for most digital and analog signal measurement applications .
2 Analog Channels: Allows simultaneous measurement and comparison of two signals .
Real-Time Sample Rate: 1GSa/s for capturing fast and transient signals with high accuracy .
Deep Memory Depth: 25Kpts (CEX model) or 64Kpts (CEX+ model) per channel for longer signal capture and analysis .
Large Color Display: 7-inch TFT LCD with 800×480 resolution for clear and detailed waveform viewing .
Built-in USB Interface: USB Host and USB Device support for data transfer, screenshot saving, and PC remote control .
Automatic Measurements: Supports 34 automatic measurements (frequency, amplitude, rise time, etc.) saving time and effort .
Reference Signal Generator: Provides multi-frequency square wave output (10Hz, 100Hz, 1kHz, 10kHz) for probe testing .
Math Functions: Supports addition, subtraction, and FFT for signal spectrum analysis .
Key Technical Specifications
Specification Value
Channels 2 (Analog)
Bandwidth 100 MHz
Real-Time Sample Rate 1GSa/s
Memory Depth 25Kpts (CEX) / 64Kpts (CEX+)
Waveform Capture Rate ≥2000 wfms/s (CEX) / 5000 wfms/s (CEX+)
Rise Time ≤3.5 ns
Vertical Sensitivity 1mV/div – 20V/div
Time Base Range 2ns/div – 50s/div
Display 7" TFT LCD, 800×480 pixels
Interfaces USB Host, USB Device, Pass/Fail
Weight 2.2 kg
Dimensions 306 × 147 × 122 mm
Package Contents
UTD2102CEX Oscilloscope Unit
2 × Switchable Probes (1:1 / 10:1) for Channel 1 & 2
Power Cord
USB Cable (for PC connection)
Software CD (with PC software and drivers)
User Manual (Multi-language)
*Note: These files can also be found on the official UNI-T website (uni-trend.com) by searching for model UTD2102CEX.*
