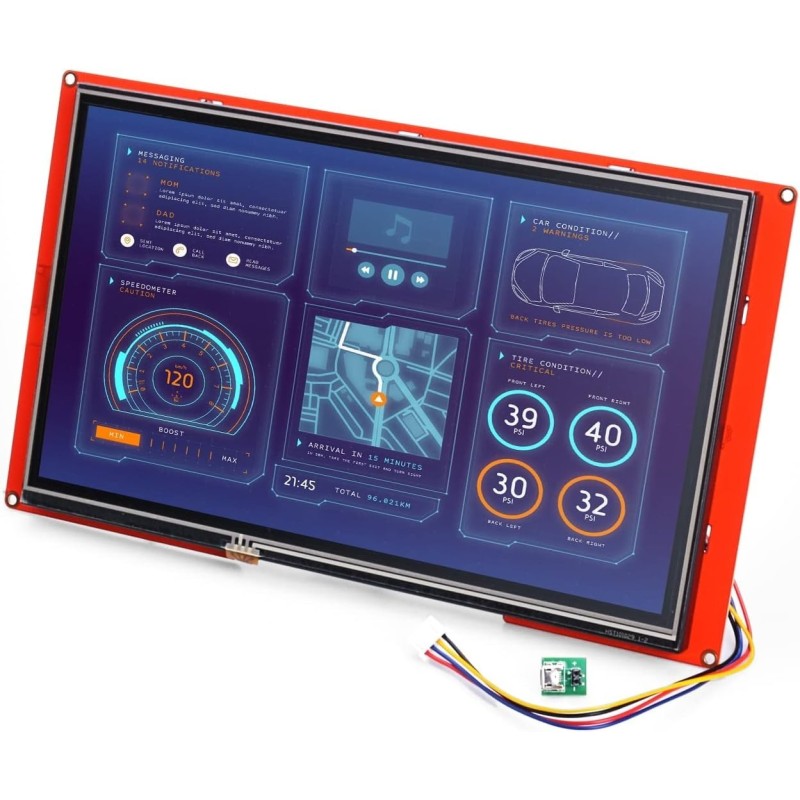

Nextion Intelligent NX1060P101 HMI Display 10 Inch 1024x600

300.00 US$
شامل للضريبة

Complete HMI display with touchscreen. This screen can be serially controlled via an UART port. It also has GPIO outputs that can be controlled via the Nextion software. The graphical interface of this module can also be programmed via an SD card or via the UART connection.
Design your own screen interface with touchscreen in the Nextion software. For examples and library's see this Github.

الكمية

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

The Nextion Intelligent screens have a number of advantages over the enhanced Nextion screens:

  • More powerful hardware in terms of MCU, flash storage and SRAM
  • Ability to play audio, video and animation options
  • Supports more advanced software features and functions such as transparent components, loading effects, drag and drop functionalities etc.

Specifications:

  • Input voltage: 4.75 - 6.5V  (5V standard)
  • Input current  : 800mA (max brightness), 170 mA (sleep mode). Recommended power supply: 5V, minimum 2A
  • Screen format: 10 inches
  • Screen resolution: 1024x600 pixels
  • Screen brightness: 0 ~ 300 nits (adjustable with 1%)
  • Touchscreen type: Resistive
  • Flash storage: 128MB
  • EEPROM: 1024 bytes
  • RAM: 512 KB
  • Instruction buffer: 1024 bytes
  • Colors: 64K (65536)
  • Speaker:
    • 0.5 watt rated capacity
    • Impedance of 16Ω
  • Available GPIO pins: 8x (including 4 PWM pieces)
  • SD card slot, FAT32. Suitable for a maximum of 32 GB SD card
  • Cable (4 pin) included with micro USB power adapter
  • Dimensions: 258 x 152 x 11.5mm
  • Has four M3 mounting holes
