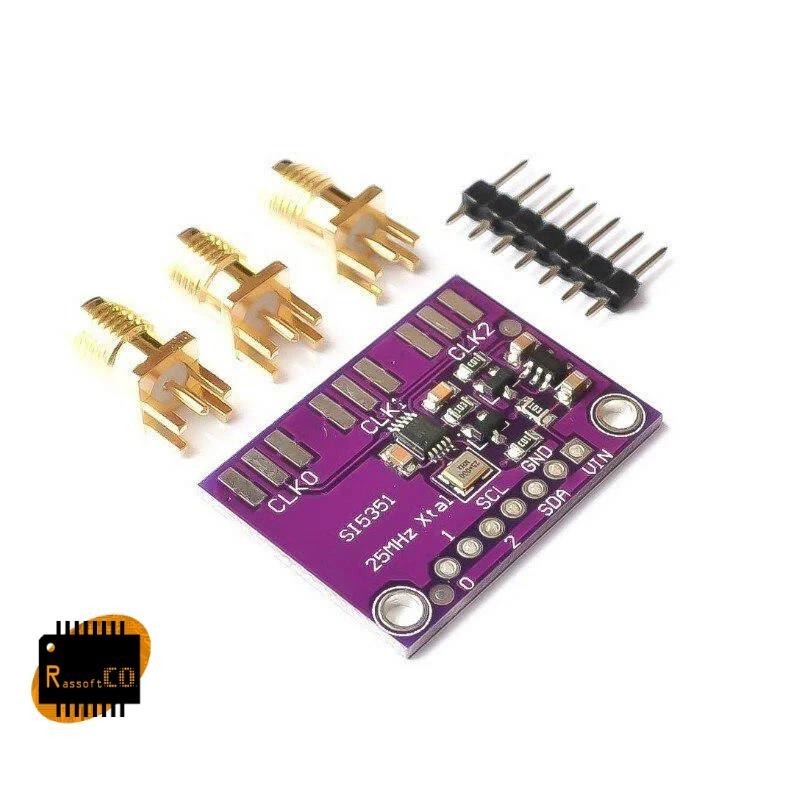

SI5351 I2C Signal Clock Generator Oscillator DDS 8KHz-160MHz Module
7.20 US$
شامل للضريبة
The Si5351A clock generator is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLL’s and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, and each one can have a different frequency. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Description
Generates up to 8 non-integer-related
Frequencies from 8 kHz to 160 MHz
I2C user-definable configuration
Exact frequency synthesis at each output (0 ppm error)
Highly linear VCXO
The optional clock input (CLKIN)
Low output period jitter: 100 ps pp
Configurable spread spectrum selectable at each output
Operates from a low-cost, fixed frequency crystal: 25 or 27 MHz
Supports static phase offset
Programmable rise/fall time control
Glitchless frequency changesApplications:
HDTV, DVD/Blu-ray, set-top box
Audio/video equipment, gaming
Printers, scanners, projectors
Residential gateways
Networking/communication
Library:
24002
