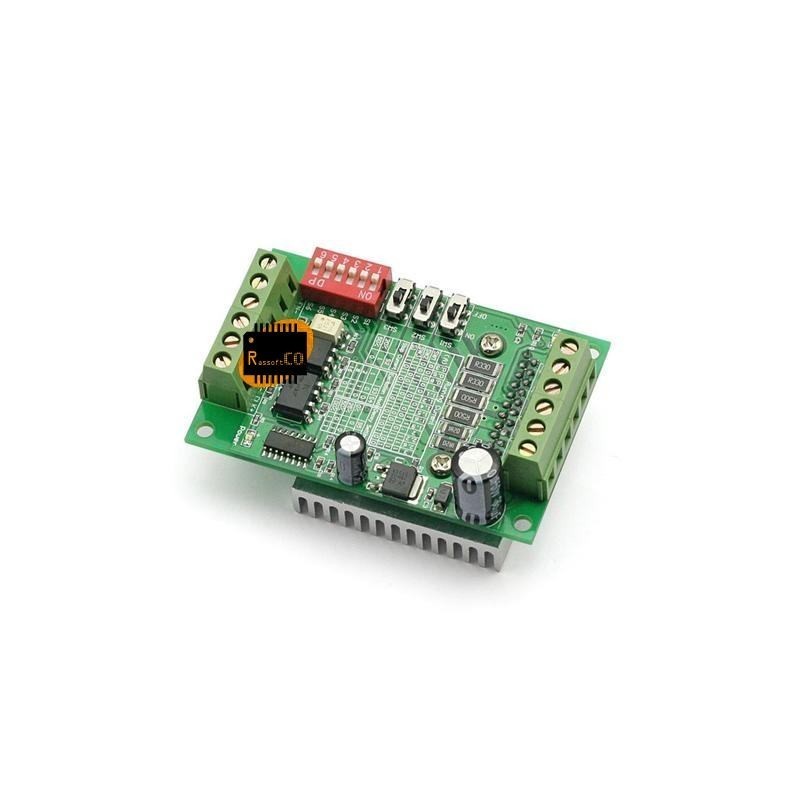

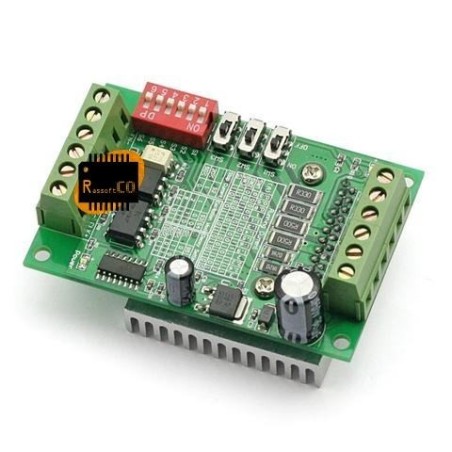

Stepper Motor Driver Controller TB6560-V2.0-3A
search
  • Stepper Motor Driver Controller TB6560-V2.0-3A

Stepper Motor Driver Controller TB6560-V2.0-3A

11.60 US$
شامل للضريبة

TB6560 3A Single Axis Stepper Stepping Motor Driver Board will significantly increase torque and ease of configuration of larger motors. Cheap and great driver for CNC or 3D printer.

Ultra-small, the overall size: 62mm * 75mm, installation of four mechanical positioning hole size: 65mm * 55, hole size Φ3mm

الكمية

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

  • Operating voltage :DC 10V-35V
  • Very easy to use, no instructions, all of use are marked on the board
  • With large heat sink to ensure good heat dissipation
  • Input signal high-speed opto-coupler isolation, guarantee not losing steps
  • Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function
  • Attenuation model adjusted for all the motors can be locked when no noise
  • Working voltage: DC 10V-35V.Recommend Switching Power Supply DC24V
  • 6N137 high-speed Opto-Coupler , to ensure a high speed without step out.
  • New original Toshiba TB6560AHQ chip, low-voltage shutdown, of overheating parking and over-current protection circuit to ensure optimal performance.
  • Rated output: ± 3A ,peak 3.5A.
  • For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
  • The Automatic half-decay adjustable.
  • Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
  • Volume: 50 x 75 x 35 ( MM)
  • The current level adjustable to meet your various application needs.
  • Thick tooth radiators, good heat dissipation.
