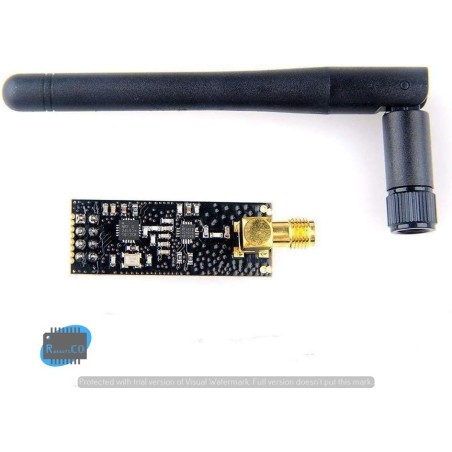

nRF24L01+PA+LNA Module – Long Range 2.4GHz Wireless Transceiver (1000m)

7,50 $
Bruttopreis

An upgraded version of the classic nRF24L01 module, integrating a Power Amplifier (PA) and Low-Noise Amplifier (LNA) to extend wireless communication range up to 1000 meters under ideal conditions . Operating in the 2.4GHz ISM band, it is the ideal choice for projects requiring reliable long-distance wireless communication, such as remote sensing systems, robotics, and drones.

Menge

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Key Features

  • Extended Range up to 1000m – Thanks to integrated PA (Power Amplifier) and LNA (Low-Noise Amplifier)

  • High Output Power up to 20dBm – Strong signal that effectively penetrates obstacles

  • Superior Receiver Sensitivity down to -104dBm – Captures weak signals clearly

  • Three Selectable Data Rates – 250kbps, 1Mbps, 2Mbps (slower rate = longer range)

  • 125 Adjustable Frequency Channels – Flexibility to avoid interference with other devices

  • Multi-Node Communication – A single module can communicate with up to 6 other devices

  • External SMA Antenna – Features an external antenna for improved performance, replaceable with higher-gain options

Key Technical Specifications

Specification Value
Frequency Band 2.4 GHz ISM
Operating Voltage 1.9V – 3.6V (3.3V ideal)
Max Output Power +20 dBm
TX Current ≈ 115mA
RX Current ≈ 45mA
RX Sensitivity -104dBm @ 250kbps
Line-of-Sight Range Up to 1000 meters (ideal)
Practical Range 300-500 meters (open field)
Interface SPI (up to 10MHz)
Board Dimensions 40.5 × 15.5 mm (excluding antenna)

Pin Configuration

Pin Name Description
1 GND Ground
2 VCC 3.3V Power (⚠️ Do NOT use 5V!)
3 CE Chip Enable (RX/TX mode control)
4 CSN Chip Select (Active Low, SPI enable)
5 SCK SPI Clock
6 MOSI SPI Data Input (Master Out Slave In)
7 MISO SPI Data Output (Master In Slave Out)
8 IRQ Interrupt Request (optional)

⚠️ Critical Important Notes

  • ⚠️ Voltage: The module operates on 3.3V ONLY. Connecting to 5V will permanently damage it .

  • ⚠️ Power Supply: The module draws up to 115mA during transmission. The Arduino 3.3V pin cannot supply this current. Use an external 3.3V regulator (e.g., AMS1117-3.3) .

  • ⚠️ 10µF Capacitor: It is highly recommended to add a 10µF capacitor between VCC and GND near the module to stabilize the power supply .

  • ⚠️ Line of Sight: Maximum range requires a clear line of sight. Avoid metal obstacles and sources of interference .
