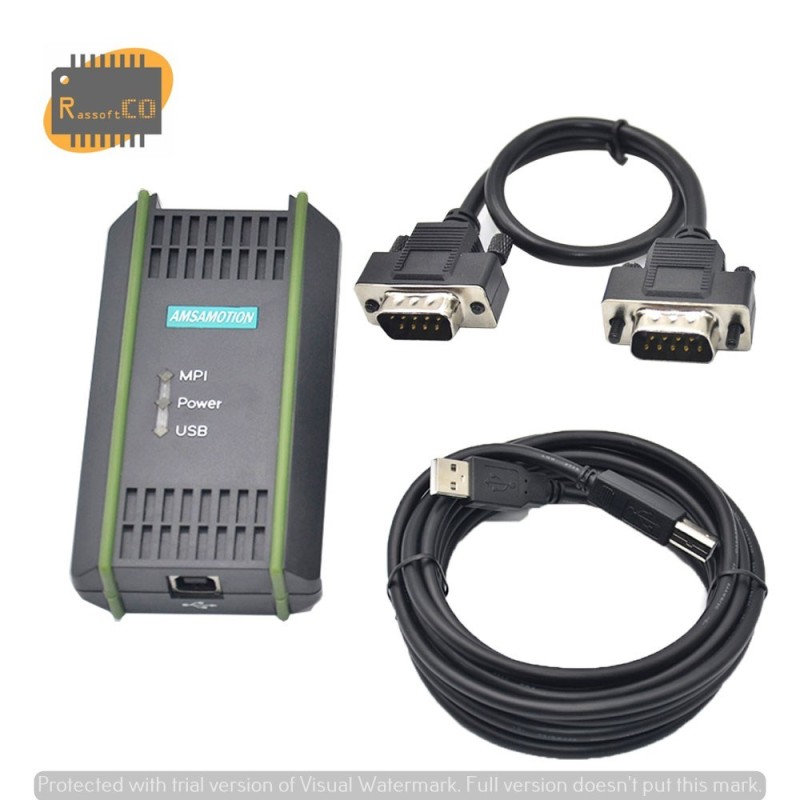

6ES7972-0CB20-0XA0 – PC Adapter USB (USB-MPI / USB-PPI) for Siemens S7 PLCs
125,00 $
Bruttopreis
A professional communication adapter (PC Adapter) that allows your PC to connect to Siemens S7-200, S7-300, and S7-400 Programmable Logic Controllers (PLCs) via USB . This adapter supports USB-PPI (for S7-200) and USB-MPI (for S7-300/400) protocols, providing a reliable and fast link for program upload/download, monitoring, control, and fault diagnosis . It features optional built-in electrical isolation to ensure stable performance even in electrically noisy industrial environments .
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
-
Wide Siemens PLC Compatibility: Supports S7-200, S7-300, and S7-400 series .
-
Dual Protocols: Supports USB-PPI (for S7-200) and USB-MPI (for S7-300/400) .
-
Siemens Software Support: Compatible with STEP 7, TIA Portal, and Micro/WIN (SP9 V4.0) .
-
High Communication Speed: Baud rates up to 1.5 Mbps with auto-adaptive capability .
-
Enhanced Electrical Isolation: Available in two versions (Photoelectric or Electromagnetic isolation) for improved signal stability and noise immunity .
-
Built-in Protection: Features a PTC (resettable) protection circuit against over-voltage, over-current, and short circuits .
-
Easy Setup: No virtual COM port required – simply select USB directly in the software (with STEP 7 V5.2 or Micro/Win 4.0 SP5 and above) .
-
Durable Build: Soft rubber shell that is pressure and drop resistant, with a cable length of approximately 4.5 meters .
-
HMI (Touch Panel) Support: Supports many Siemens touch panels such as TP170, TP177, MP277, KTP, and Comfort Panels (requires isolated version) .
Key Technical Specifications
| Specification | Value |
|---|---|
| Compatible Model | 6ES7972-0CB20-0XA0 (PC Adapter USB) |
| Supported PLC Series | Siemens S7-200, S7-300, S7-400 |
| Communication Protocols | PPI, MPI, DP (multi-master supported) |
| PC Interface | USB (Type-A) |
| PLC Interface | RS485 (via included DB9 cable) |
| Baud Rates | PPI: 9.6k, 19.2k, 187.5k / MPI: 19.2k, 187.5k, 500k, 1.5M (auto-adaptive) |
| Supported OS | Windows XP, Windows 7 (32/64-bit) (Windows 8/10 not recommended) |
| Compatible Software | STEP 7, TIA Portal, Micro/WIN SP9 |
| Cable Length | Approximately 4.5 meters |
| Operating Temperature | -30°C to 75°C |
| Protection | PTC (resettable) against over-voltage, over-current, short circuit |
| Isolation | Optional (Photoelectric or Electromagnetic) |
Package Contents
-
1 × USB to MPI/PPI Adapter Cable (AMSAMOTION 0CB20)
-
1 × DB9 Connector Cable (to PLC)
-
1 × Original Packaging
