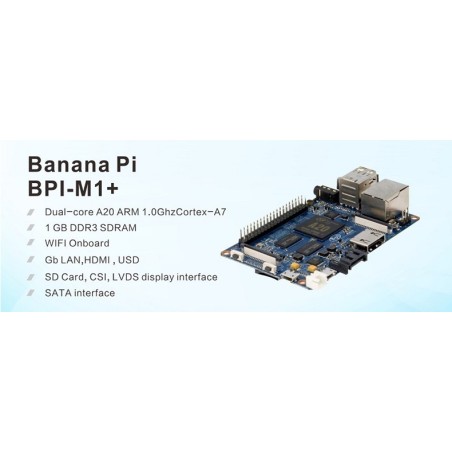

Banana Pi BPI-M1 Plus – Open-Source Single Board Computer with Onboard WiFi
85,00 $
Bruttopreis
An open-source single-board computer (SBC) that is an upgraded version of the classic BPI-M1 board. It features the same high-performance AllWinner A20 dual-core 1GHz processor and 1GB of DDR3 RAM, but adds onboard WiFi (802.11 b/g/n) for convenient wireless connectivity. The board supports multiple operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian, making it an excellent choice for home servers, router projects, desktop computing, and e-learning .
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
AllWinner A20 Dual-Core CPU: 1.0 GHz ARM Cortex-A7 with Mali-400 MP2 GPU (OpenGL ES 2.0/1.1) .
Onboard WiFi: Integrated 802.11 b/g/n wireless chip – no need for a USB WiFi dongle .
SATA Interface: SATA 2.0 port for connecting a hard drive or SSD, ideal for building your own NAS .
Gigabit Ethernet: 1000 Mbps wired networking for high-speed data transfer .
Rich Expansion Headers: 40-pin GPIO, CSI camera connector, DSI/LVDS display interface, AV out, HDMI, IR receiver, and microphone input .
Lithium Battery Interface: Dedicated connector for a 3.7V Li-ion battery to power the board off-grid .
Micro USB Power: Operates on 5V/2A via a standard Micro USB port (like most Android phones) .
Open Community & Wide Support: Multiple OS images available (Armbian, Ubuntu, Debian, OpenWRT, FreeBSD, Lakka TV) with full source code on GitHub .
Key Technical Specifications
Specification Value
CPU AllWinner A20 Dual-Core Cortex-A7 @ 1.0 GHz
GPU ARM Mali-400 MP2 (OpenGL ES 2.0/1.1)
RAM 1 GB DDR3
Storage SATA 2.0 + SD card slot
Network Gigabit Ethernet (1000 Mbps) + WiFi 802.11 b/g/n
USB Ports 2× USB 2.0 + 1× USB OTG (Micro-USB)
Video Output HDMI, AV (composite), LVDS/RGB (via LCD header)
Video Input CSI (camera, 40-pin FPC)
Audio 3.5mm jack (headphone + mic) + HDMI
GPIO 40-pin (UART, I2C, SPI, CAN, ADC, PWM)
Power 5V / 2A via Micro USB
Board Dimensions Not specified – same form factor as BPI-M1
Supported OS Android 4.4, Lubuntu, Ubuntu, Debian, Raspbian, OpenWRT, FreeBSD, Lakka TV
Package Contents
1 × Banana Pi BPI-M1 Plus Board
15671-1034
