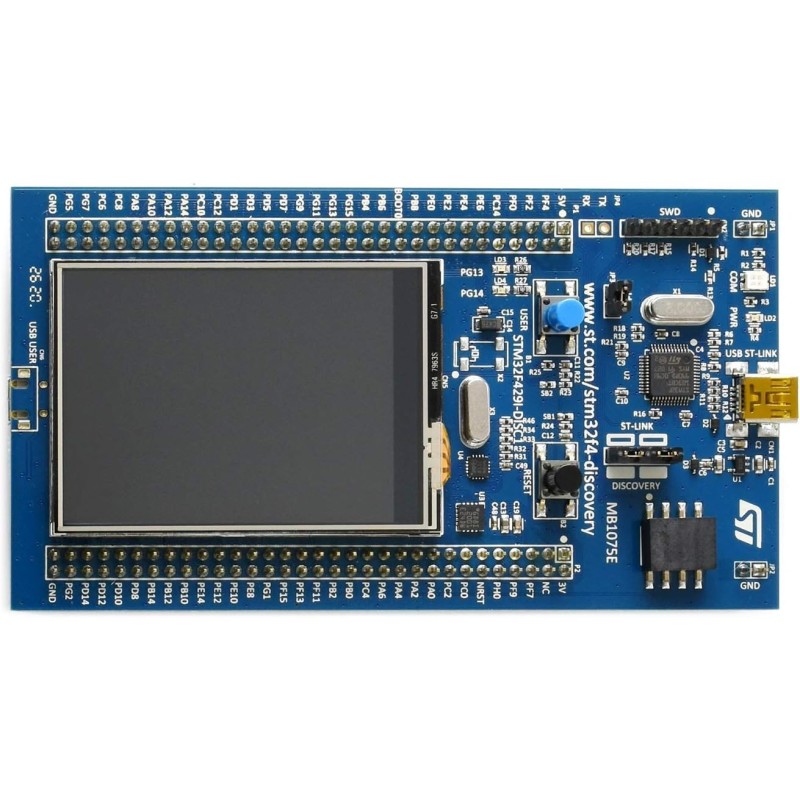

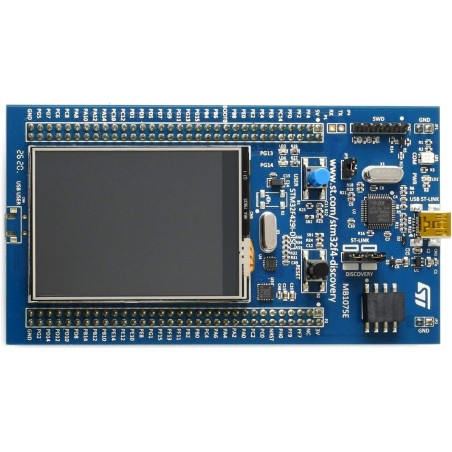

32F429IDISCOVERY / STM32F429I-DISC1
95,00 $
Bruttopreis
A complete demonstration and development platform based on the STM32F429ZIT6 microcontroller from STMicroelectronics, featuring a high-performance ARM Cortex-M4 core running at up to 180 MHz with FPU . This board is designed to be the ideal starting point for developers, hobbyists, and students, providing a feature-rich environment for developing advanced graphical applications, embedded systems, and IoT projects. The board includes a color LCD display, MEMS motion sensor, and onboard SDRAM memory.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
Powerful STM32F429ZIT6 MCU: ARM Cortex-M4 core at 180 MHz with FPU, 2 MB Flash memory, and 256 KB RAM .
Color LCD Display: 2.4-inch QVGA TFT LCD, perfect for graphical user interface applications .
Additional Memory: 64 Mbit SDRAM onboard for expanded application memory .
MEMS Motion Sensor: 3-axis digital output gyroscope for sensing and control applications .
Onboard ST-LINK/V2-B: In-circuit debugger/programmer with USB re-enumeration (Virtual COM port, mass storage, debug port) .
USB OTG Connectivity: Micro-AB USB connector supporting USB host and device modes .
Indicator LEDs: Six LEDs including user LED, USB communication LED, and power LED .
Interactive Buttons: User button and Reset button .
Flexible Power Options: ST-LINK USB VBUS, USB connector, or external power sources .
IDE Support: Compatible with IAR Embedded Workbench, MDK-ARM, and STM32CubeIDE .
Key Technical Specifications
Specification Value
MCU STM32F429ZIT6 (LQFP144)
Core ARM Cortex-M4 @ 180 MHz with FPU
Flash Memory 2 MB
RAM 256 KB + 4 KB
Display 2.4" TFT LCD, QVGA
Additional Memory 64 Mbit SDRAM
Sensors 3-axis MEMS gyroscope
Connectivity USB OTG (Micro-AB)
Connectors USB Micro-AB, 2.54mm expansion headers
LEDs 6 LEDs (User, USB, Power)
Buttons User button, Reset button
Package Contents
STM32F429ZI Discovery Board (32F429IDISCOVERY)
USB Type A to Mini-B Cable (for ST-LINK)
Quick Start Guide
