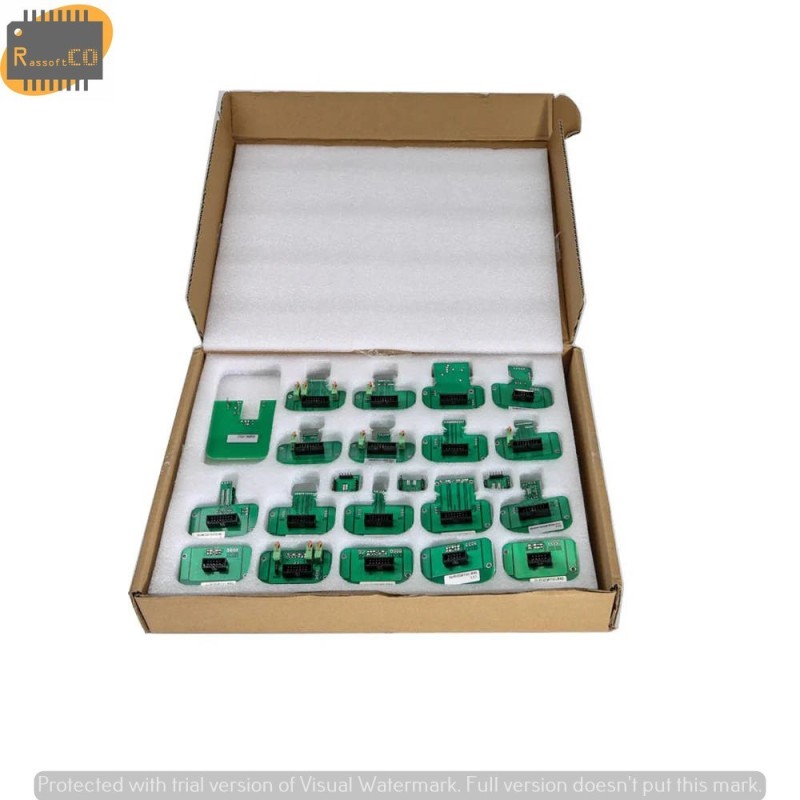

Full Set BDM Probe Adapters – 22pcs for KTAG / KESS / KTM / Dimsport
135,00 $
Bruttopreis
A complete professional set of BDM (Background Debug Mode) adapters designed for ECU programming and chip tuning tools such as KTAG, KESS, KTM, and Dimsport Trasdata . This 22-piece kit covers the most common ECU types from leading manufacturers including Bosch, Delphi, Denso, Siemens, and Marelli . Essential for professionals in the automotive chip tuning and engine reprogramming field.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Key Features
Comprehensive Coverage: Includes 22 BDM adapters covering a wide range of ECUs used in European and Asian vehicles .
Major Manufacturer Support: Features specialized adapters for Bosch, Delphi DCM, Denso (CN1/CN2/CN3), Siemens, Infineon Tricore, Magneti Marelli, Toyota NEC, and VAG PCR2.1 systems .
High-Quality Build: Adapters feature ~60mm width and 2mm thickness, manufactured with high-quality green PCB material for durability and reliable connectivity .
Wide Compatibility: Works with the most popular programming tools including K-TAG, KESS V2, KTM100, FGTECH, BDM100, and Dimsport Trasdata .
Built-in LED Lighting: Features integrated LED illumination to facilitate precise alignment of pogo pins with ECU pads, improving accuracy and work safety .
Easy-to-Use Design: Smart frame design with fine adjustment mechanism ensures optimal contact between adapters and the ECU board without causing damage .
Adapter List (22 Pieces)
No. Designed For
1 Bosch
2 Delphi DCM
3 Bootloader ST10xx
4 Infineon Tricore EDC/MED17
5 Marelli MPC55xx JTAG
6 Delphi MPC55xx JTAG
7 Denso CN1 Boot
8 Denso CN2 Boot
9 Denso CN3 Boot
10 Denso CN1 AUD
11 Denso CN2 AUD
12 Delphi DCI
13 Base Adapter 1.27
14 NexusEFI T6 Lotus
15 Magneti Marelli BDM insert
16 Siemens BDM insert
17 EDC7 BDM insert
18 Magneti Marelli MPC/SPC56xx
19 Nexus MPC5xx TRW ECU
20 VAG 1.6tdi - Siemens-Continental PCR2.1
21 Toyota NEC76F-20
22 Toyota NEC76F-26
Package Contents
22 × BDM Probe Adapters (full set as listed)
Metal BDM Frame (clamping stand)
LED BDM Frame (acrylic with illumination)
4 × Probe Pens with connection cables
LED driver / charger
Important Notes
For Professional Users: Using these adapters requires advanced knowledge of automotive electronics and programming tools .
ECU Opening: Requires opening the ECU casing to locate the BDM pads .
External Power: Some ECUs (e.g., Siemens, Delphi) may require external 12V power during programming .
