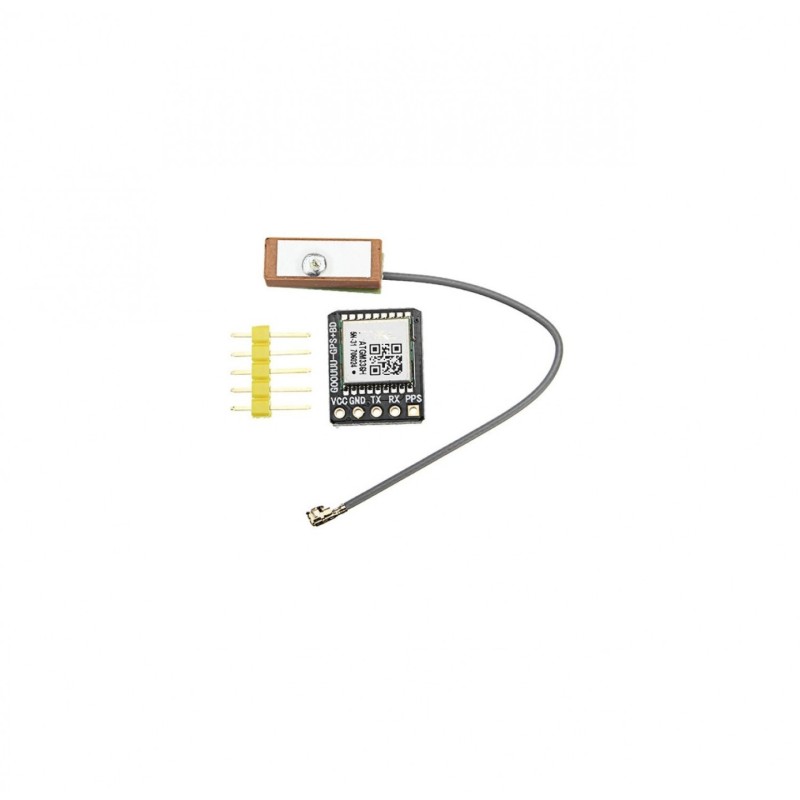

ATGM336H GPS Module

A GPS module that works with UART (TX and RX) signals. The corresponding GPS antenna is included.

Specifications:

• Voltage range (VCC): 5V DC
• I/O Voltage: 3.3V
• Standard baud rate: 9600
• Uses the ATGM366H-5N-31 GPS module
• Works with GPS, BDS
• LED indication when GPS has a fix (blinking LED)
• Dimensions PCB (LxWxH): 16.2x13.8x5.3mm (without header pins)

Pinout:

• VCC: Input voltage
• GND: Ground/min
• TX: UART connection
• RX: UART connection
• PPS: Precise Pulse Second; Gives a pulse every second (linked to the UTC time)

The TinyGPS++ library can be used to read the GPS module: TinyGPS++

An alternative is the NeoGPS library: NeoGPS (can also be installed via the library manager of the Arduino IDE)

For more information see the datasheet under the "Downloads" tab.

Datasheet
