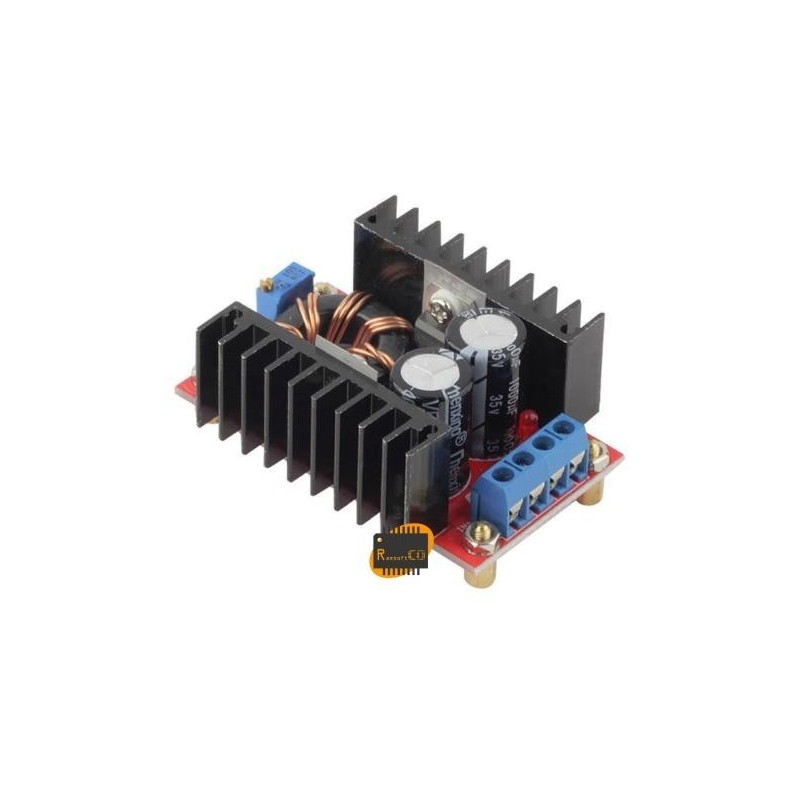

150W DC-DC Boost Converter 10-32V to 12-35V Step Up Charger

150W Boost Converter DC-DC 10-32V to 12-35V Step Up Voltage Charger Module

Input voltage: DC 10V-32V.
Output voltage: DC12V-35V(adjustable).
Output current: 10A (MAX).
Input current: 16A (MAX) (more than 10A please strengthen heatsink).
Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency: 94% (when Input 19V 2.5A Output 16V, Reference).
Output ripple: 2% (MAX).
Working temperature: industrial (- 40aeProduct.getSubject()to +85 aeProduct.getSubject()) ( environmental temperature, more than 40 degrees, please reduce
power to use, or - enhance cooling).
Full-Load temperature: 45 aeProduct.getSubject() .
No-load current: 25mA typical. Voltage regulation: ą 0.5%.
Load regulation: ą 0.5%. Dynamic response speed: 200uS 5%.
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Size: 65mm x 35mm x 21mm
