Adxl345 digital three-axis acceleration of gravity tilt module

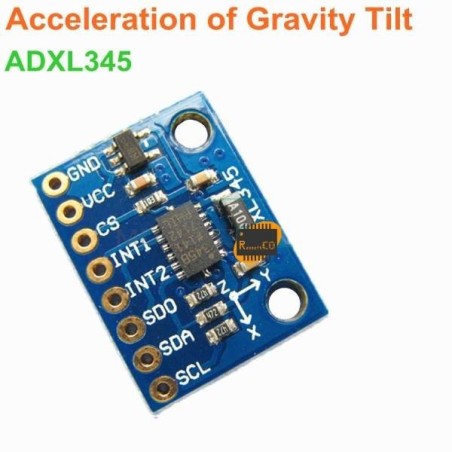

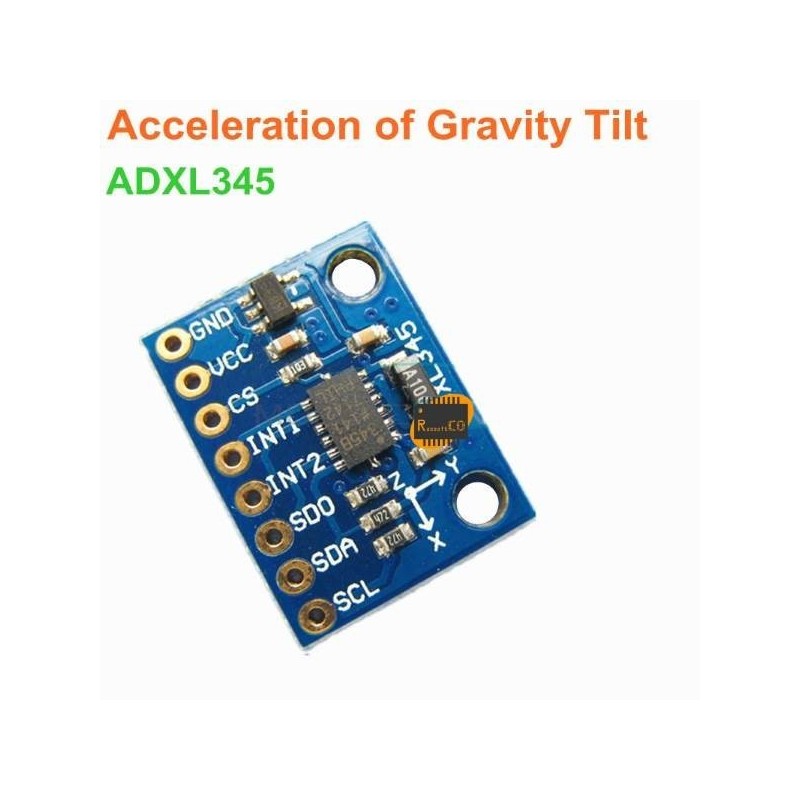

ADXL345 Digital 3-axis Acceleration, Gravity, Tilt sensor module – GY-291


The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.
Applications:
    Gesture Sensing
    Tap/Double Tap Detection
    Free-Fall Detection
    Impact or colision Detection
    Accident Detection
Technical Specifications:
    Model: GY-291
    Color: Blue
    Features Chipset: ADXL345;
    Power supply :3~5V (Module has on-board 3.3V regulator)
    IO Level : 3.3v (requires Level translator if interfaced with 5V IO)
    Communication methods: IIC/SPI communication protocol;
    Measuring range: +/- 2g +/-16g; 3-Axis, +/- 2g; +/-4g; +/-8g; +/- 16g
    Applications: Flying robots, Stability control applications
    Dimensions: 21 x 16 x 4 mm / 0.83 x 0.63 x 0.16 inch
    Weight: 1 g / 0.04 oz
