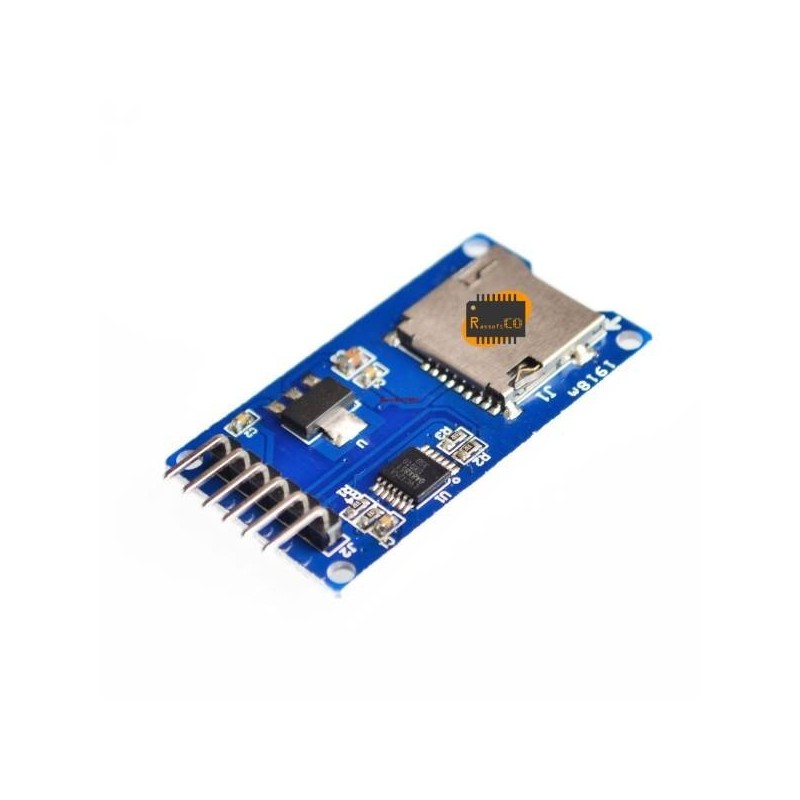

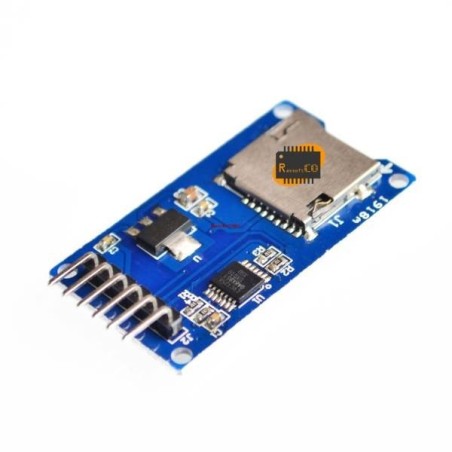

Micro SD card mini TF card reader module SPI interfaces with level converter chip for Arduino

MicroSD Card Reader/Writer Module with on board level translator

MicroSD Card Reader/Writer Module with on board 3.3V regulator and Level shifter for 5V logic interface.
It is easily interfaced as a peripheral to your Arduino, and other embedded boards and microcontrollers. Through programming, you can read and write to the microSD card over SPI interface.
Features:
    Supports MicroSD Card
    Supports Micro SDHC card (high-speed card)
    On board 3.3V regulator (AMS1117-3.3) for +5v to 3.3V generation.
    Support Micro SD Card, Micro SDHC card (high-speed card)
    The level conversion circuit board that can interface level is 5V or 3.3V
    Communication interface is a standard SPI interface
    easy card insertion and removal. (Push in Push out)
    Mounting holes: 4x M2 screws Mounting hole diameter of 2.2mm,
    easy to install
Technical Specifications:
    Power supply (VCC): 4.5V – 5.5V
    On board 3.3V voltage regulator circuit
    Level conversion circuit based on SN74LVC125A level converter chip
    Mounting holes: 4 M2 screws positioning hole diameter of 2.2mm
    Control Interface: GND, VCC, MISO, MOSI, SCK, CS
    Size:45 x 28mm
Pinouts:
    GND
    VCC
    MISO
    MOSI
    SCK
    CS
