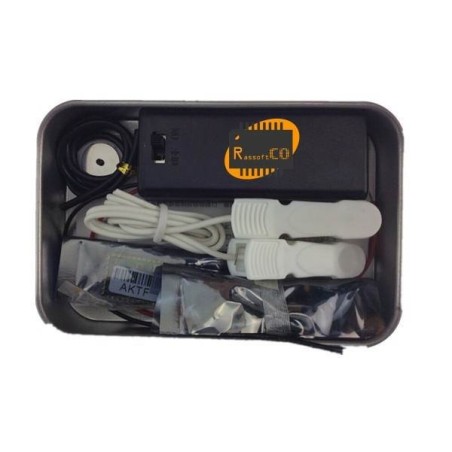

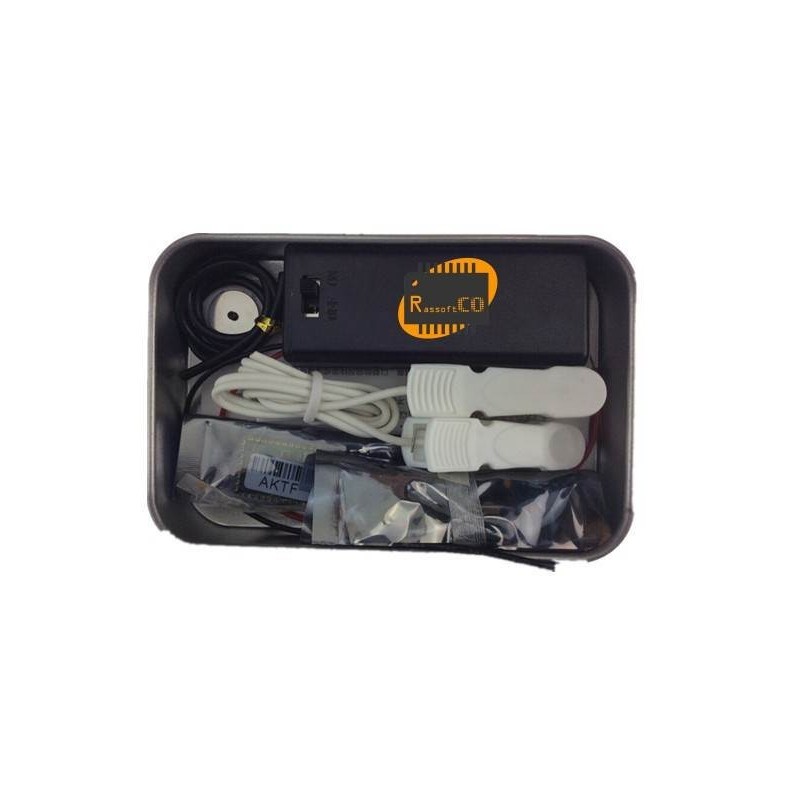

NeuroSky ThinkGear ASIC Module Bluetooth EEG acquisition module TGAM suite

NeuroSky Bluetooth EEG acquisition module TGAM suite


NeuroSky’s EEG biosensor digitizes and amplifies raw analog brain signals to deliver concise inputs to games, toys, and devices running health and wellness, educational and research applications. Our brainwave algorithms, developed by NeuroSky neuroscientists and our partner research institutions, have revealed many new ways to interact with our world.

Features:
    Direct connect to dry electrode
    One EEG channel + Reference + Ground
    Extremely low-level signal detection
    Advanced filter with high noise immunity
    RAW EEG at 512Hz

Data Outputs:
    RAW EEG Signal
    Attention
    Meditation
    Delta, Theta, low apha, high alpha, low beta, high beta and gamma waves
    Additional algorithms available in SDK

Dimensions:
    TGAM1 Module: 27.9 x 15.2 x 2.5mm
    TGAT1 Chip: 9 x 9 x 1.6mm
    Weight (Max) 130mg

Specifications:
    512Hz sampling rate at 12 bits
    3-100Hz frequency range
    ESD Protection: 4kV Contact Discharge; 8kV Air
    Max Power Consumption: 15mA @ 3.3V
    Operating voltage 2.97 ~3.63V
    UART (Serial):
        1200, 9600, 57600 baud
        8-bits
        No parity
        1 stop bit
