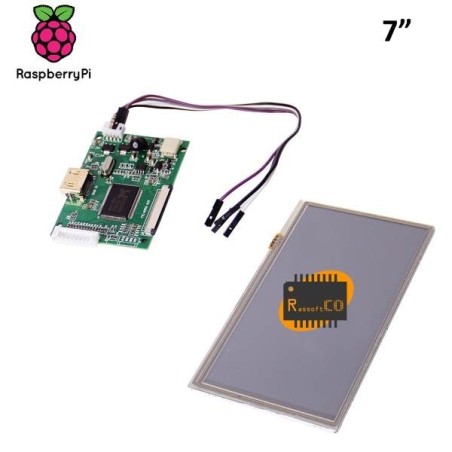

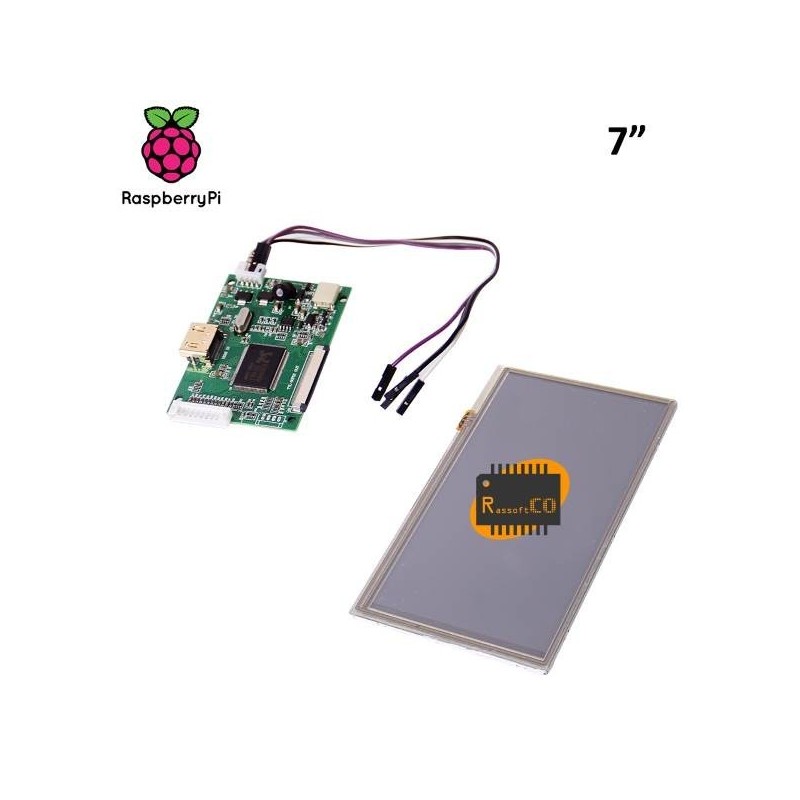

7.0" Raspberry Pi HDMI only LCD Touch Screen Display TFT Monitor

7inch Raspberry Pi LCD Touch Screen Display TFT Monitor AT070TN90 with Touchscreen Kit HDMI Input only Driver Board

-LCD size: 7.0 inches(Diagonal) with touch panel bundle
-Driver element: a-Si TFT active matrix
-Resolution: 1024*3(RGB)*600
-Display mode: Normally white, Trans-missive
-Dot pitch: 0.05(W) x 0.15(H) mm
-Interface: Digital
Driver Board Interfaces

1.Power supply(5-12V 2A),we recommend use 12V 2A power adaptor.
2.HDMI
3.Keyboard
4.TTL Signal
5.LVDS Signal 1/2 ch 6bit 8bit
6.12V Back light
7.Converter Connector
Notice 1: Power supply NOT included, the use of power supply on the car, please add a 5V regulator
Notice 2: This controller board support Automatically switch to AV2 (View Reversing camera).
Operating voltage: Power supply(5-12V >1A ), can be directly from the computer USB port or power bank!(special reminder: the use of the power plug polarity requirements for: inside positive and outside negative-Positive and negative can not be reversed, so as not to damage the circuit board)
Notice 3: The five buttons are as follows: S1 = Power, S2=Menu/Select, S3=Up, S4=Down, S5=Video Source Select
