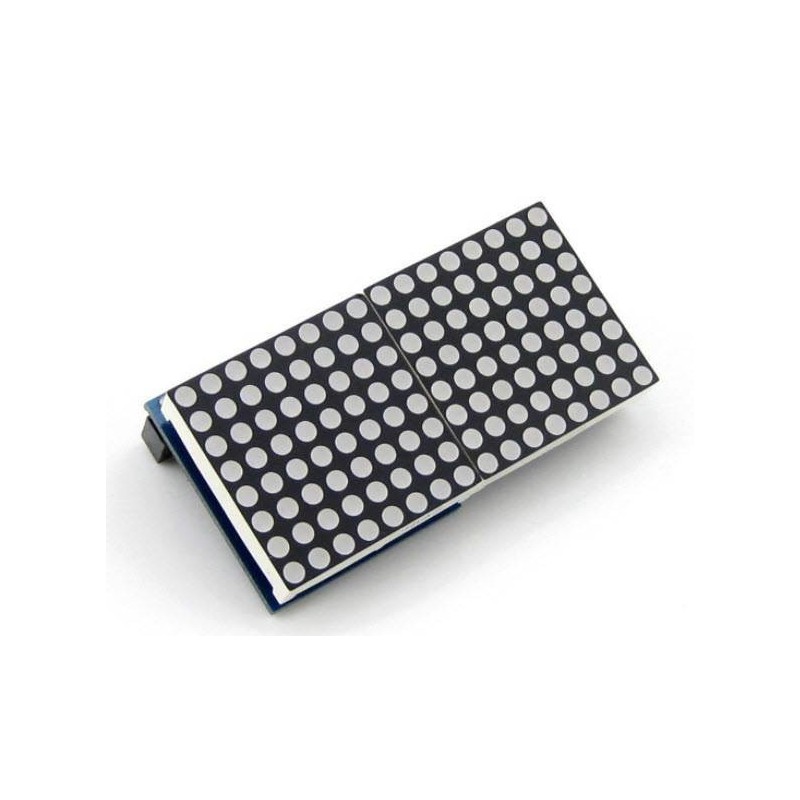

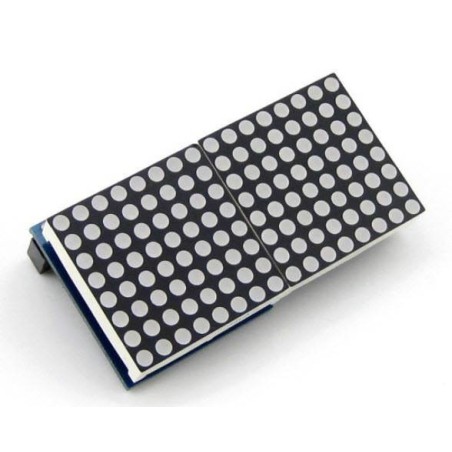

Raspberry Pi LED Matrix LED
$19.00
Tax included
LED Matrix Designed for Raspberry Pi
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
LED Matrix Designed for Raspberry Pi
Features:
Supports any revision of Raspberry Pi (directly-pluggable)
Driver : MAX7219
Matrix type :Two 8 × 8 common cathode LEDs
Color : red
Dimension : 64.3 × 35.0 × 26.5mm
Interface:
PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V power positive (3.3V input)
2, 4 5V power positive (5V input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 21, 22, 26 NC NC
6, 9, 14, 20, 25 GND ground
19 MOSI data input
23 SCK clock
24 CE0 chip selection
