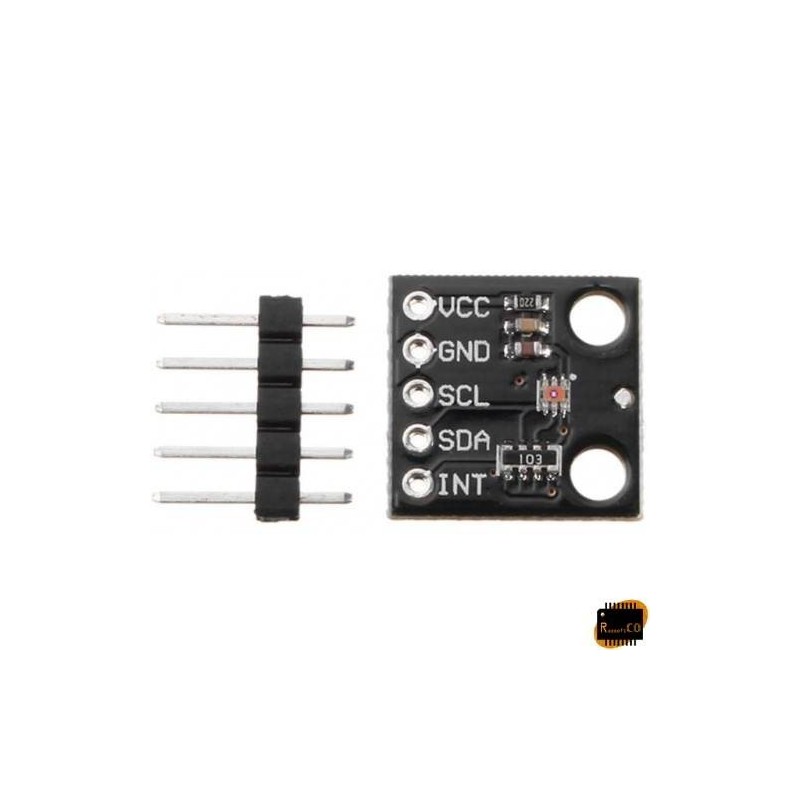

ISL29125 RGB Light Sensor
29,00 $
Bruttopreis
The ISL29125 breakout board makes it very easy to sense and record the light intensity of the general red, green, and blue spectrums of visible light while rejecting IR from light sources. You can then use these color sensor readings for the purposes of logging and finding patterns, or creatively calculate and make control decisions in your electronic projects.
Each pin from the ISL29125 has been broken out to allow you to interface with it, SDA, SCL, 3.3V, GND, and even an optional INT pin is available for use. The ISL29125 Light Sensor operates at 3.3V but if you plan on using this chip with a 5V microcontroller make sure to use a logic level converter.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Features of ISL29125
Operating Voltage : 3.3V
Operating Current : 56µA
Selectable Range
I2C (SMBus compatible) Output
ADC Resolution 16 bits
SCL, SDA, INT, 3.3V, & GND Pins Broken Out
Dimensions : 18.4mm x 17.2mm x 2.4mm (0.7" x 0.6" x 0.09")
